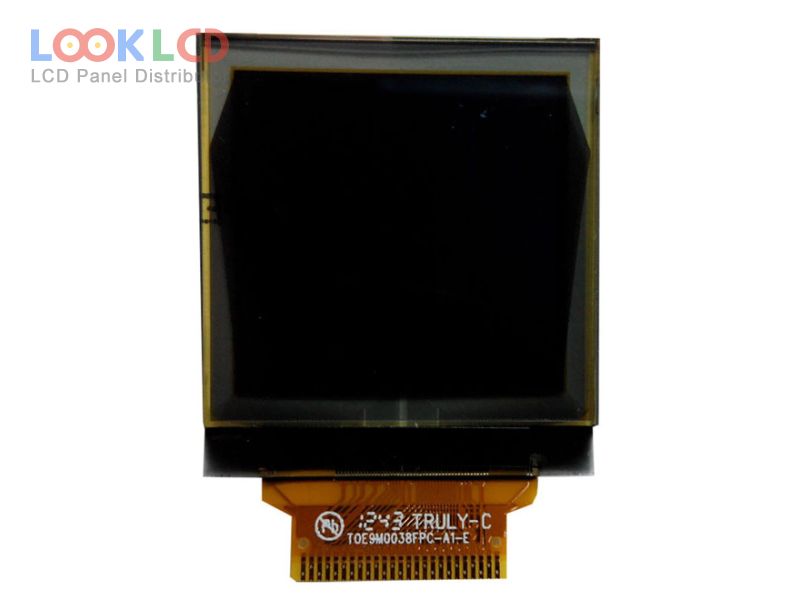

| PartNumber | OEL9M0039-Y-E |
| Brand | Other |
| Size | 1.5 |
| Application | MPH |
| Resolution | 128×128 |
| Composition | OLED |
| Brightness | 60 cd/m² (Typ.) |
| CR | 10000:1 |
| Colors | Grayscale(Y) |
| Backlight | self |
| Interface | CPU/SPI |
| Panel Brand | TRULY |
| Panel Model | OEL9M0039-Y-E |
| Panel Type | PM-OLED , OLED |
| Panel Size | 1.5 inch |
| Active Area | 26.86×26.86 mm |
| Outline | 34.9×37.8×1.6 mm |
| Surface | |
| Contrast Ratio | 10000 : 1 (Min.) |
| Display Colors | Grayscale(Y) (4-bit) |
| Viewing Angle | 80/80/80/80 (Min.)(L/R/U/D) |
| Frequency | 100Hz |
| Driver IC | COG Built-in SSD1329Z |
| Signal Interface | 8-bit 6800/8080 parallel, SPI, 25 pins |
| Input Voltage | 3.0/3.0/13.0V (Typ.)(VDD/VDDIO/VCC) |
