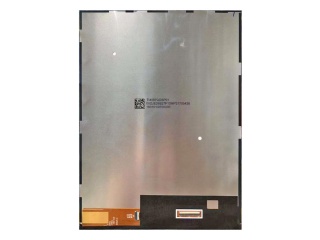

| PartNumber | TM097QDSP01 |
| Brand | TIANMA |
| Size | 9.7 |
| Application | Pad & Tablet |
| Resolution | 1536×2048 |
| Composition | LCM , a-Si TFT-LCD |
| Brightness | |
| CR | 1000:1 |
| Colors | 16.7M |
| Backlight | 6S6P WLED , No Driver |
| Interface | MIPI |
| Manufacturer | TIANMA |
| Model Name | TM097QDSP01 |
| Screen Size | 9.7 inch |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 1536(RGB)×2048 (QXGA) 264PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 147.456 × 196.608 (H×V) |
| Outline(mm) | 154.016 × 207.83 × 3.75 (H×V×D) |
| Bezel Area(mm) | - |
| Treatment | Hard coating |
| Luminance | 460 cd/m² (Typ.) |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Response | 25 (Typ.)(Tr+Td) ms |
| Good View at | Symmetry |
| Work Mode | SFT, Normally Black, Transmissive |
| Color Depth | 16.7M 72% NTSC |
| Mass | 110g (Typ.) |
| Used for | Pad & Tablet |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | MIPI (2 ch, 4 data lanes) , 61 pins Connector |
| Voltage Supply | 1.8/5.0/-5.0V (Typ.)(VDDI/AVDD/AVEE) |
| Max. Ratings | Storage Temp.: -30 ~ 70 °C Operating Temp.: -10 ~ 60 °C |
