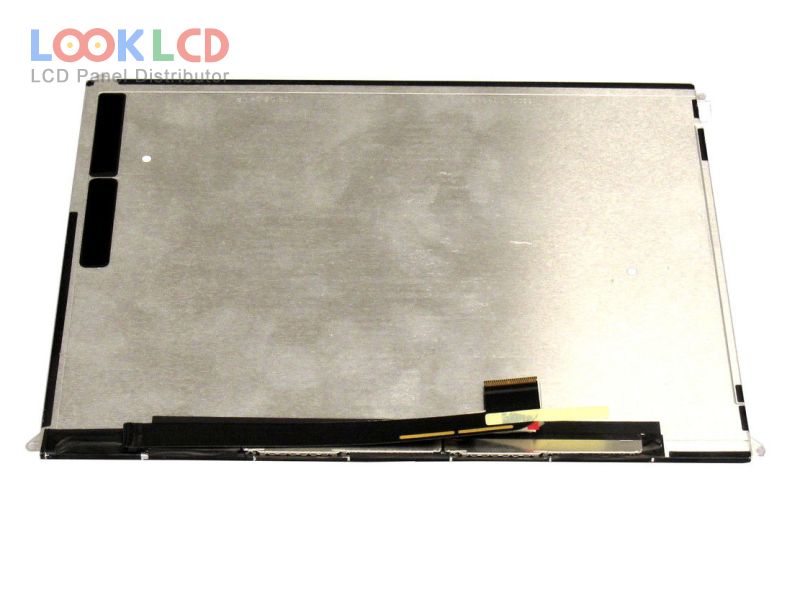

| PartNumber | LP097QX1-SPA1 |
| Brand | LG Display |
| Size | 9.7 |
| Application | PAD |
| Resolution | 2048(RGB)×1536 , QXGA |
| Composition | LCM |
| Brightness | 440 cd/m² (Typ.) |
| CR | 800:1 |
| Colors | 16.7M |
| Backlight | WLED |
| Interface | eDP |
| Panel Brand | LG Display |
| Panel Model | LP097QX1-SPA1 |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 9.7 inch |
| Display Mode | IPS, Normally Black, Transmissive |
| Active Area | 196.608×147.456 mm |
| Outline | 208.88×167.12×5.17 mm |
| Surface | Glare (Haze 0%), Hard coating (3H), Antireflection |
| Contrast Ratio | 800:1 (Typ.) |
| Display Colors | 16.7M (8-bit) |
| Response Time | 16 (Typ.)(G to G) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | 7S6P×2CNWLEDWithout Driver |
| Signal Interface | eDP (4 Lanes), 51 pins |
| Input Voltage | 3.3V (Typ.) |
