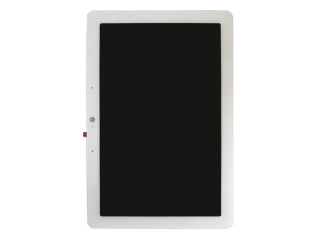

| PartNumber | TV101WXM-AG0 |
| Brand | BOE |
| Size | 10.1 |
| Application | Pad & Tablet |
| Resolution | 800×1280 |
| Composition | Assembly , a-Si TF |
| Brightness | |
| CR | 1000:1 |
| Colors | 16.7M |
| Backlight | 6S6P WLED , 15K hours , No Driver |
| Interface | MIPI |
| Manufacturer | BOE |
| Model Name | TV101WXM-AG0 |
| Screen Size | 10.1 inch |
| Screen Type | Assembly , a-Si TFT-LCD |
| Pixel Number | 800(RGB)×1280 (WXGA) 150PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 135.322 × 216.463 (H×V) |
| Outline(mm) | 164 × 245.2 (H×V×D) |
| Bezel Area(mm) | - |
| Treatment | Anti Fingerprint, Hard coating (7H) |
| Luminance | 400 cd/m² (Typ.) |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Response | 30 (Typ.)(Tr+Td) ms |
| Good View at | Symmetry |
| Work Mode | - |
| Color Depth | 16.7M 57% NTSC |
| Mass | 300g (Max.) |
| Used for | Pad & Tablet |
| Refresh Rate | 60Hz |
| Touchscreen | PCAP |
| Signal Type | MIPI (4 data lanes) , 51 pins Connector |
| Voltage Supply | 3.3/5.5/-5.5V (Typ.)(VDDIO/AVDD/AVEE) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
