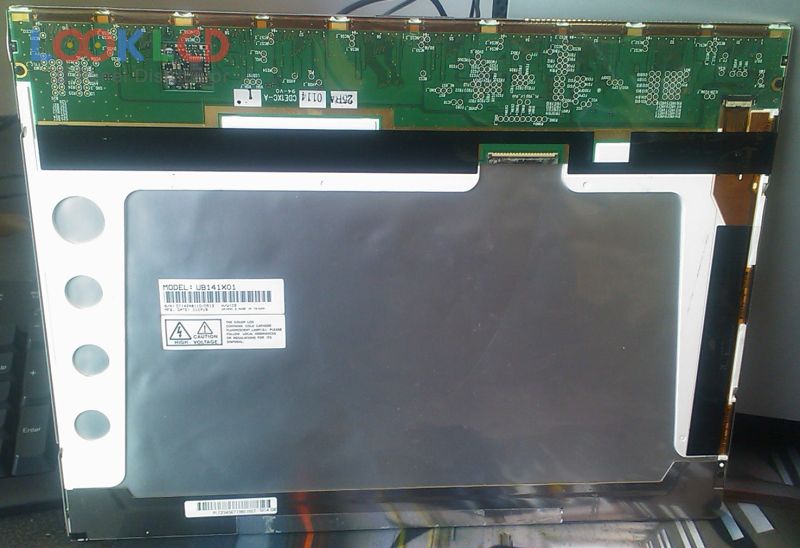

| PartNumber | UB141X01 |
| Brand | UNIPAC |
| Size | 14.1 |
| Application | NBPC |
| Resolution | 1024(RGB)×768 , XGA |
| Composition | LCM |
| Brightness | 150 cd/m² (Typ.) |
| CR | 200:1 |
| Colors | 262K |
| Backlight | CCFL |
| Interface | LVDS |
| Panel Brand | UNIPAC |
| Panel Model | UB141X01 11 Compatible model |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 14.1 inch |
| Display Mode | TN, Normally White, Transmissive |
| Active Area | 285.696×214.272 mm |
| Outline | 298.5×226.7×6.1 mm |
| Shape Style | Wedge (PCBA Bent, Depth ≥5.2mm) |
| Surface | Antiglare (Haze 12%), Hard coating (3H) |
| Contrast Ratio | 200:1 (Typ.) |
| Display Colors | 262K (6-bit) |
| Response Time | 20/30 (Typ.)(Tr/Td) |
| Viewing Angle | 40/40/15/35 (Min.)(CR≥10)(L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | 1 pcsCCFLWithout Driver |
| Signal Interface | LVDS (1 ch, 6-bit), 20 pins |
| Input Voltage | 3.3V (Typ.) |
| B141EW04 V0 | AUO | 14.1 | 1280×800 |
| B141XG03 V2 | AUO | 14.1 | 1024×768 |
| G141I1-L01 | Innolux | 14.1 | 1280×800 |
| HT14X1B-201 | HYDIS | 14.1 | 1024×768 |
| LP141WX1-TL04 | LG Display | 14.1 | 1280×800 |
| LP141WX1-TLE3 | LG Display | 14.1 | 1280×800 |
| LTN141AT08-304 | Samsung | 14.1 | 1280×800 |
| LTN141XB-L04 | Samsung | 14.1 | 1024×768 |
| LTN141XF-L03 | Samsung | 14.1 | 1024×768 |
| UB141X01 | UNIPAC | 14.1 | 1024×768 |
| CLAA156WA01A | CPT | 15.6 | 1366×768 |
| LP140WH2-TLA2 | LG Display | 14.0 | 1366×768 |
| LP140WH2-TLEA | LG Display | 14.0 | 1366×768 |
| LP140WH6-TJA1 | LG Display | 14.0 | 1366×768 |
| LP171WU6-TLB1 | LG Display | 17.1 | 1920×1200 |
| LTD133EWCF | TOSHIBA | 13.3 | 1280×800 |
| LTN133AT16-S01 | Samsung | 13.3 | 1280×800 |
| LTN141AT16-003 | Samsung | 14.1 | 1280×800 |
| LTN156AT19-001 | Samsung | 15.6 | 1366×768 |
| N173HCE-E31 | Innolux | 17.3 | 1920×1080 |
