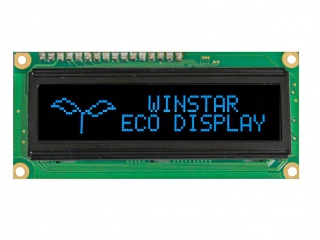

| PartNumber | WEG010016AB |
| Brand | Winstar |
| Size | 2.4 |
| Application | Instruments & Me |
| Resolution | 100×16 |
| Composition | PM-OLED, OLED |
| Brightness | |
| CR | |
| Colors | Mono(Blue) |
| Backlight | self |
| Interface | |
| Model | WEG010016AB |
| Diagonal Size | 2.4 inch |
| Type | PM-OLED, OLED |
| Pixel Format | 100×16 42PPI |
| Configuration | Rectangle |
| Active Area | 59.95(H)×11.15(V) mm |
| Outline Dim. | 80(H)×36(V) ×10(D) mm |
| Bezel Area | 66(H)×16(V) mm |
| Treatment | - |
| View Direction | Symmetry |
| Response Time | - |
| Viewing Angle | - |
| Operating Mode | - |
| Support Color | Mono(Blue) |
| Light Source | self |
| Weight | - |
| Designed For | Instruments & Meters |
| Frame Rate | - |
| Touch Panel | Without |
| 5.0V (Typ.) |
