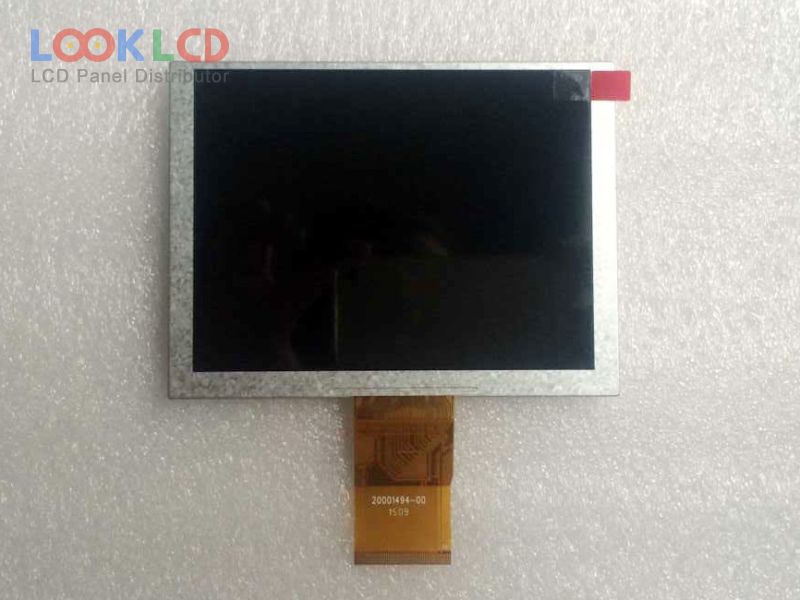

| PartNumber | ZJ050NA-08C |
| Brand | Innolux |
| Size | 5.0 |
| Application | VOIP |
| Resolution | 640(RGB)×480 , VGA |
| Composition | LCM |
| Brightness | 250 cd/m² (Typ.) |
| CR | 500:1 |
| Colors | 16.7M |
| Backlight | WLED |
| Interface | TTL |
| Panel Brand | INNOLUX |
| Panel Model | ZJ050NA-08C |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 5.0 inch |
| Display Mode | TN, Normally White, Transmissive |
| Active Area | 101.76×76.32 mm |
| Outline | 117.65×88.43×5.9 mm |
| Surface | Antiglare |
| Contrast Ratio | 500:1 (Typ.) |
| Display Colors | 16.7M (8-bit), CIE193150% |
| Response Time | 10/15 (Typ.)(Tr/Td) |
| Viewing Angle | 70/70/50/70 (Typ.)(CR≥10)(L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | WLEDWithout Driver |
| Signal Interface | Parallel RGB (1 ch, 8-bit), 50 pins |
| Input Voltage | 3.3/10.4/17.0/-7.0V (Typ.)(DVDD/AVDD/VGH/VGL) |
