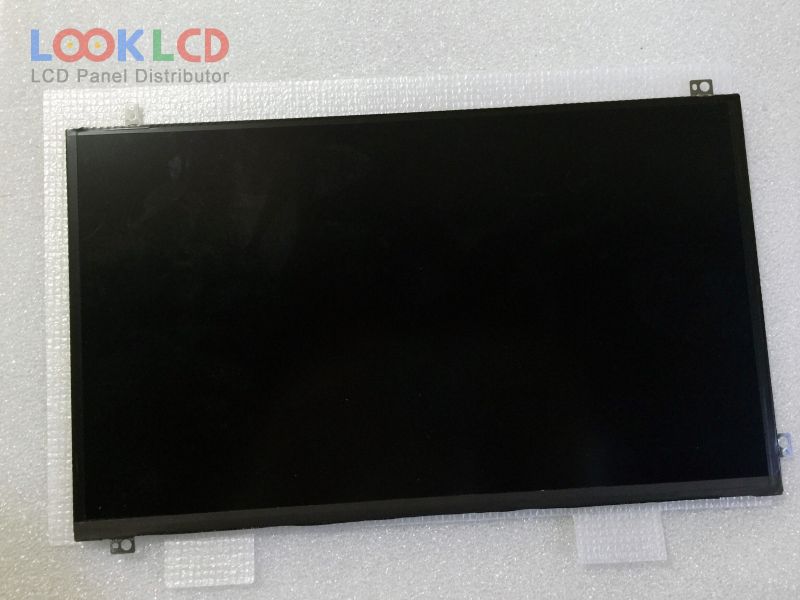

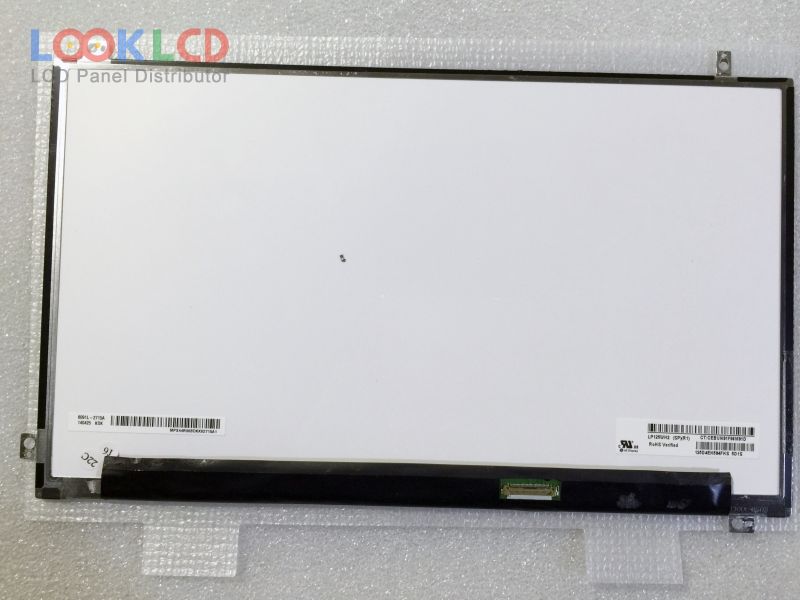

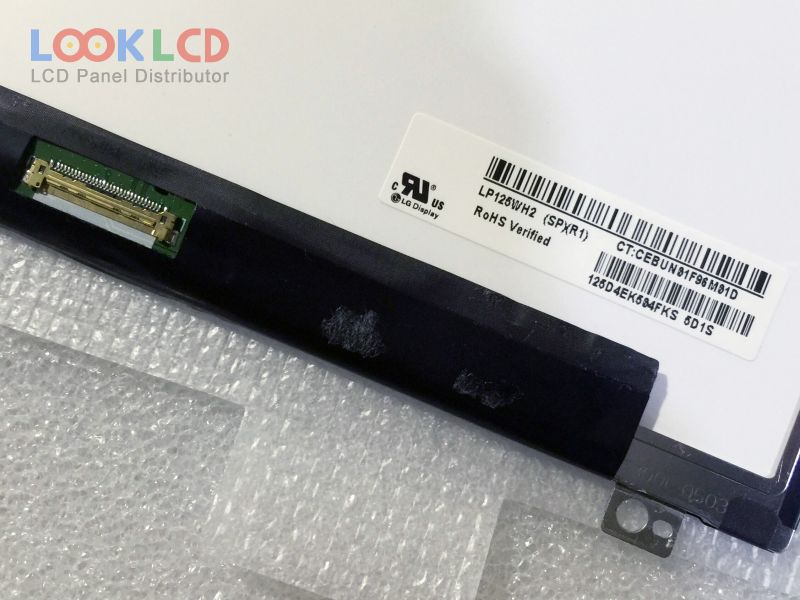

| PartNumber | LP125WH2-SPR1 |
| Brand | LG Display |
| Size | 12.5 |
| Application | PAD |
| Resolution | 1366(RGB)×768 , WXGA |
| Composition | LCM |
| Brightness | 300 cd/m² (Typ.) |
| CR | 500:1 |
| Colors | 262K |
| Backlight | WLED |
| Interface | eDP |
| Panel Brand | LG Display |
| Panel Model | LP125WH2-SPR1 |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 12.5 inch |
| Display Mode | AH-IPS, Normally Black, Transmissive |
| Active Area | 275.59×154.94 mm |
| Surface | |
| Contrast Ratio | 500:1 (Min.) |
| Display Colors | 262K (6-bit), CIE193150% |
| Response Time | 35 (Typ.)(Tr+Td) |
| Viewing Angle | 80/80/80/80 (Min.)(CR≥10)(L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | WLEDEmbedded (LED Driver) |
| Signal Interface | eDP (1 Lane) |
| Input Voltage | 3.3V (Typ.) |
