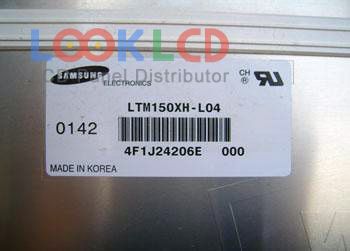

| PartNumber | LTM150XH-L04 |
| Brand | Samsung |
| Size | 15.0 |
| Application | DMPC |
| Resolution | 1024(RGB)×768 , XGA |
| Composition | LCM |
| Brightness | 330 cd/m² (Typ.) |
| CR | 300:1 |
| Colors | 16.2M |
| Backlight | CCFL |
| Interface | LVDS |
| Panel Brand | SAMSUNG |
| Panel Model | LTM150XH-L04 |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 15.0 inch |
| Display Mode | TN, Normally White, Transmissive |
| Active Area | 304.128×228.096 mm |
| Outline | 331.6×254.8×13 mm |
| Surface | Antiglare (Haze 25%), Hard coating (3H) |
| Contrast Ratio | 300:1 (Typ.) |
| Display Colors | 16.2M (6-bit + FRC) |
| Response Time | 5/20 (Typ.)(Tr/Td) |
| Viewing Angle | 70/70/55/60 (Typ.)(CR≥10)(L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | 4 pcsCCFLWithout Driver |
| Signal Interface | LVDS (1 ch, 8-bit), 20 pins |
| Input Voltage | 3.3V (Typ.) |
